Model

TF1200-I

TF1200-II

TF1200-III

TF1200-IV

TF1200-V

TF1200-VI

Tube size

Φ25x600mm

Φ50x600mm

Φ60x1000mm

Φ80x1000mm

Φ100x1000mm

Φ120x1000mm

Max temperature

1200℃

Working temperature

1100℃

200mm

440mm

440mm

440mm

440mm

Power supply

220V/1.8KW

220V/1.8KW

220V/2.6KW

220V/4KW

220V/4KW

220V/5KW

Heating element

HRE alloy resistance wire

Furnace material

Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration

Furnace tube material

Quartz tube

Temperature control accuracy

±1℃

Thermocouple

N type thermocouple

Temperature control instrument

Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function; programmable 4 groups of 8 program segments, program heating, program heat preservation, program cooling

Heating rate

1-25℃/min free adjustment

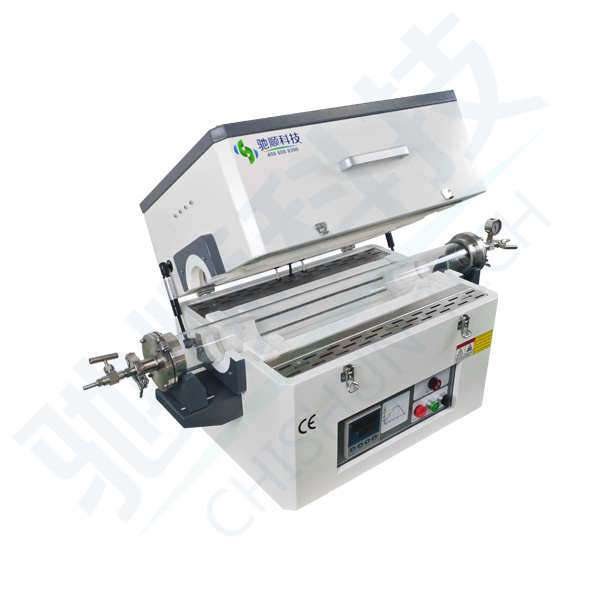

Furnace structure

Furnace temperature control integrated structure, furnace opening and closing; double-layer shell, air circulation and heat insulation

Sealing performance

Both ends of the furnace tube are equipped with stainless steel metal flanges, matched with high-temperature PTFE gaskets, which can work under vacuum with a vacuum degree of ≤5pa (rotary vane vacuum pump)

atmosphere performance

There are air inlets and outlets at both ends of the flange. The pressure gauge is installed on the metal flange. The precision needle valve can adjust the air intake and output, and can be fed with protective gases such as nitrogen, argon, and hydrogen

equipment protection

Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically

safety protection

The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators

shell

High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder

Optional accessories

1. Optional rotary vane vacuum pump (vacuum degree ≤ 5pa) 2. Optional digital vacuum gauge (1.0×105-1.0×10-1pa) 3. Optional float flowmeter (range 60-600ml/min) 4. Optional with quartz boat
